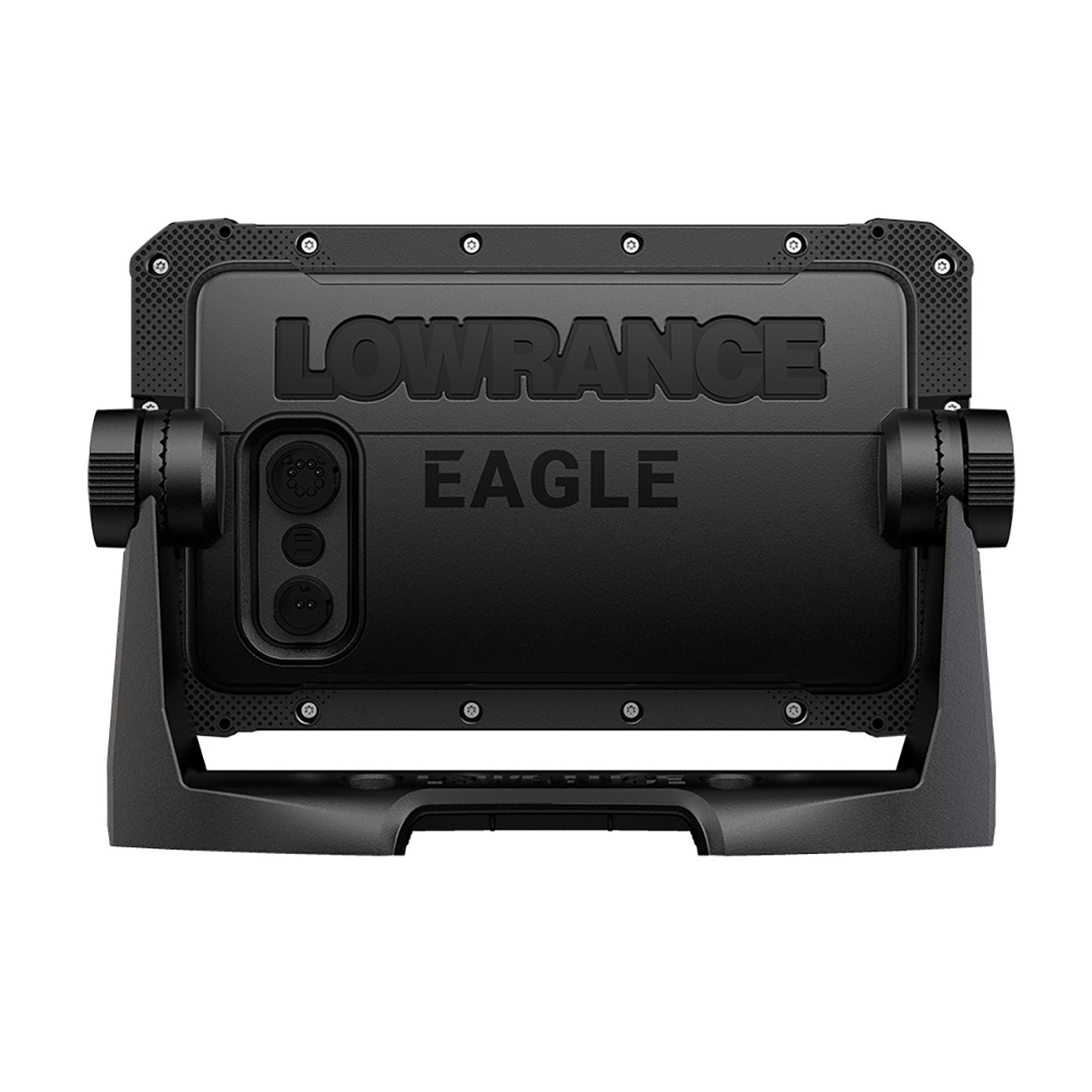

Lowrance Eagle 7 Fishfinder

The Lowrance Eagle 7 Fishfinder combines advanced sonar capabilities, intuitive design, and comprehensive mapping tools to deliver a high-performing fishfinding solution. It supports both the Enhanced TripleShot HD and Enhanced SplitShot HD transducers, each designed for specific fishing needs. Both transducers feature C-MAP Inland Charts, preloaded with detailed U.S. inland charts and featuring Genesis Live for real-time mapping updates. The IPS Screen ensures clear, vibrant views from any angle, even through polarized glasses, while FishReveal Mode combines sonar and DownScan Imaging to reveal fish hiding in cover. Anglers can enhance contrast and viewability using customizable Imaging Color Palettes. Both models utilize a reliable Twist-Lock Connector System, making installation quick and easy on any boat or kayak. Additionally, the SD Card Slot allows for software updates, Genesis Live recording, and the addition of custom charting options. The Enhanced TripleShot HD Transducer features Autotuning Sonar, SideScan, and DownScan Imaging, offering an extensive view of fish and structures beneath and around the boat—perfect for covering large water areas. On the other hand, the Enhanced SplitShot HD Transducer emphasizes Autotuning Sonar and DownScan Imaging, delivering precise, high-definition detail beneath the boat, ideal for vertical fishing and deeper water exploration. Whether you need broad coverage with the TripleShot or precise depth imaging with the SplitShot, the Lowrance Eagle 7 provides exceptional performance tailored to your fishing style.

• C-MAP Inland Charts: Preloaded with detailed U.S. inland charts, featuring Genesis® Live for real-time mapping updates.
• IPS Screen: Offers clear, vibrant views from any angle, even through polarized glasses
• FishReveal Mode: Combines sonar and DownScan Imaging to clearly reveal fish hiding in cover.
• Imaging Color Palettes: Customize contrast and viewability for easier interpretation of underwater structures.
• Twist-Lock Connector System: Quick and easy installation on any boat or kayak.
• SD Card Slot: Allows for software updates, Genesis Live recording, and adding custom charting options.
• TripleShot HD Transducer: Features Autotuning Sonar, SideScan, and DownScan Imaging, ideal for covering large water areas.
• SplitShot HD Transducer: Focuses on Autotuning Sonar and DownScan Imaging for precise depth imaging, perfect for vertical fishing and deeper water.
• Specifications:
• Display:
  • Backlight Color: Pure White LED
  • Display Resolution:800 x 480
  • Display Size: 7 inches
  • Screen Brightness: 1000 Nits
  • Viewing Angles: 80° top/bottom, 80° left/right
• Connectivity:
  • SD Card Storage: 1 slot (microSD 32 GB maximum)
  • Cartography Charts supported: C-MAP DISCOVER.
• Electrical:
  • Power Consumption Max:550 mA @ 12 V DC with backlight on full
  • Power Consumption Min: 250 mA @ 12 V DC with backlight off
  • Power Consumption typical: 550 mA @ 12 V DC with backlight on full
  • Supply Voltage: 12v DC (10.8-17VDC)
  • Recommended Fuse Rating: 6A
• Environment:
  • Humidity: 60°C, 95% relative humidity (RH) for 48 hours
  • Operating Temperature Range: 5°F to 131°F (-15°C to 55°C)
  • Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
  • Waterproof Rating: IPX7 with card door closed
• GPS:
  • Correction: SBAS
  • Time to First Fix: 45s
• MFD:
  • Cartography included: C-MAP inland charts for the US, with coverage of over 17,000+ American lakes
  • Waypoints, Routes, Tracks: 3000 Waypoints 100 Routes 100 Trails
• Physical:
  • Compass Safe: 12" (300mm)
  • Dimensions: W x H x D: 225.9 mm (8.89") x 139.8 mm (5.5") x 88.5 (3.48)
  • Mounting Type: Gimbal Bracket or Dash Mount
  • Weight: 0.67 kg (1.48 lb)
  • Interface: Keypad: 8-way directional keypad, Zoom +/- (MOB), Exit, Enter, Menu, Waypoint, Power/ backlight
• In the Box:
  • Tripleshot Transducer:
    • Eagle 7 Display
    • TripleShot HD Transducer
    • TripleShot Bracket
    • Power Cable, with fuse and connectors
    • Eagle 7 Bracket and mounting hardware
    • Manufacturers’ warranty: 1 Year + 4 additional years of upgrade options totaling 5 years
  • Splitshot Transducer:
    • Eagle 7 Display
    • SplitShot HD Transducer
    • Bullet/SplitShot Transom Bracket
    • Power Cable, with fuse and connectors
    • Eagle 7 Bracket and mounting hardware
    • Manufacturers’ warranty: 1 Year + 4 additional years of upgrade options totaling 5 years
